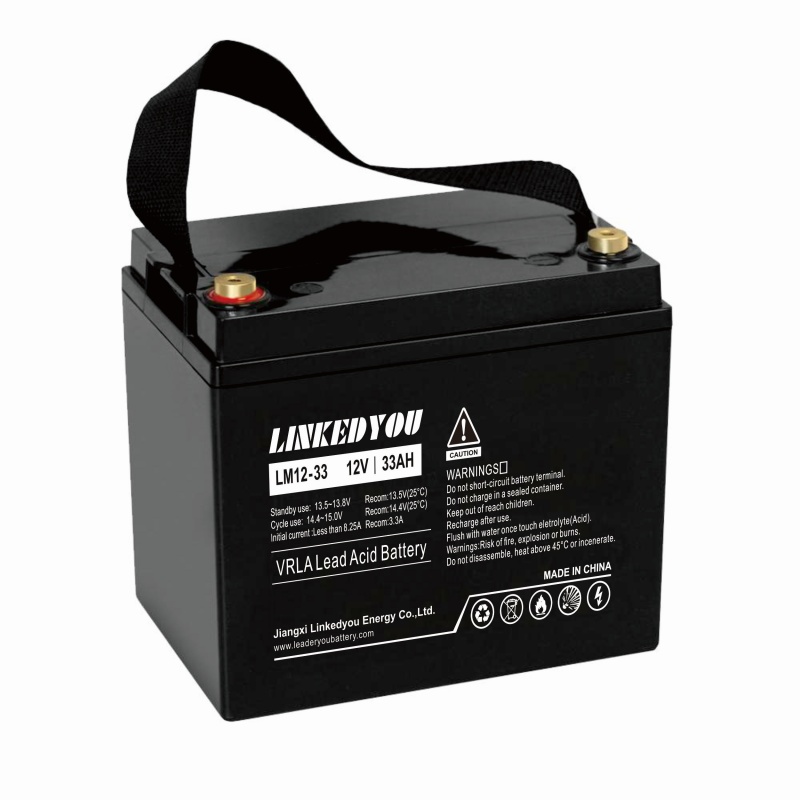

12V33Ah Sealed Lead Acid Battery
Summary
LM series battery is specially designed for UPS system, emergency power and security system applications. Using thick plate and high corrosion resistance grid alloy, matching with high-impact AGM separator, the battery maintains high consistency for better performance and reliable standby service life.
Product characteristics
- Capacity range(C10): 33Ah~250Ah
- Voltage level: 6V, 12V
- Valve Regulated design, no free liquid electrolyte, Maintenance -free
- Designed floating service life: 10 years (25˚C)
- Stable performance and small internal resistance, good high performance for recycle use
- Thickened Sn alloy plate and the grid with corrosion resistance.
- Wide operating temperature range ：-15-35˚C
- Self-discharge rate: ≤ 3% / month
LM Series Battery(30AH~420AH）
| Model | Voltage | Capacity | Dimension(mm) | Terminal | |||
| Length | Width | Height | Total Height | ||||
| LM6-200 | 6 | 200.0 | 306 | 168 | 220 | 222 | M8 |
| LM6-225 | 6 | 225.0 | 243 | 187 | 275 | 275 | M8 |
| LM6-250 | 6 | 250.0 | 260 | 180 | 265 | 272 | M8 |
| LM6-310 | 6 | 310.0 | 295 | 178 | 346 | 366 | M8 |
| LM6-330 | 6 | 330.0 | 295 | 178 | 354 | 360 | M8 |
| LM6-380 | 6 | 380.0 | 295 | 178 | 404 | 410 | M8 |
| LM6-420 | 6 | 420.0 | 295 | 178 | 404 | 410 | M8 |
| LM8-170 | 8 | 170.0 | 260 | 182 | 266 | 271 | M8 |
| LM8-200 | 8 | 170.0 | 260 | 182 | 295 | 300 | M8 |
| LM12-33 | 12 | 33.0 | 198 | 131 | 155 | 164 | M6 |
| LM12-35 | 12 | 35.0 | 198 | 131 | 155 | 164 | M6 |
| LM12-38 | 12 | 38.0 | 196 | 165 | 175 | 182 | M6 |
| LM12-40 | 12 | 40.0 | 196 | 165 | 175 | 175 | M6 |
| LM12-45 | 12 | 40.0 | 196 | 165 | 175 | 175 | M6 |
| LM12-50 | 12 | 50.0 | 229 | 136 | 210 | 232 | M6 |
| LM12-55A | 12 | 55.0 | 229 | 136 | 210 | 214 | M6 |
| LM12-55B | 16 | 55.0 | 260 | 169 | 214 | 217 | M6 |
| LM12-60A | 12 | 60.0 | 261 | 167 | 184 | 188 | M6 |
| LM12-65C | 12 | 65.0 | 351 | 166 | 173 | 184 | M8 |
| LM12-70 | 12 | 70.0 | 260 | 168 | 210 | 215 | M8 |
| LM12-75 | 12 | 75.0 | 260 | 168 | 210 | 215 | M8 |
| LM12-80A | 12 | 80.0 | 260 | 168 | 210 | 215 | M8 |
| LM12-80B | 12 | 80.0 | 330 | 175 | 215 | 215 | M8 |
| LM12-90A | 12 | 90.0 | 306 | 169 | 208 | 214 | M8 |
| LM12-90B | 12 | 90.0 | 332 | 175 | 215 | 215 | M8 |
| LM12-100A | 12 | 100.0 | 332 | 175 | 215 | 243 | M8 |
| LM12-100B | 12 | 100.0 | 408 | 175 | 215 | 243 | M8 |
| LM12-110 | 12 | 110.0 | 332 | 175 | 215 | 243 | M8 |
| LM12-120 | 12 | 120.0 | 408 | 174 | 233 | 240 | M8 |
| LM12-134 | 12 | 134.0 | 341 | 173 | 283 | 285 | M8 |
| LM12-150 | 12 | 150.0 | 483 | 170 | 242 | 242 | M8 |
| LM12-180 | 12 | 180.0 | 530 | 209 | 214 | 240 | M8 |
| LM12-200 | 12 | 200.0 | 530 | 209 | 214 | 240 | M8 |
| LM12-250 | 12 | 250.0 | 520 | 268 | 220 | 245 | M8 |
Main application fields
- Underground mine: miner’s lamp, transport vehicle, UPS power supply, lighting system,ect.
- Telecom and electricity: post and telecom, power station, power transmission,etc.
- Station and dock: signal light, instrument, etc.
- User system: monitoring, interphone, emergency lighting, elevator,etc.
- Bank and school, shopping mall and hospital: UPS power supply, precision instrument, emergency light,etc.
- Computer system: UPS, etc.
- Aerospace and navigation: ship, fishing boat, fish light, beacon light, precision instrument,etc.
- Tourism and entertainment: electric toy, signal light, instrument, emergency light,etc.
- National defense and military industry: aircraft, tank, armored vehicle, artillery, mobile power supply, etc.
